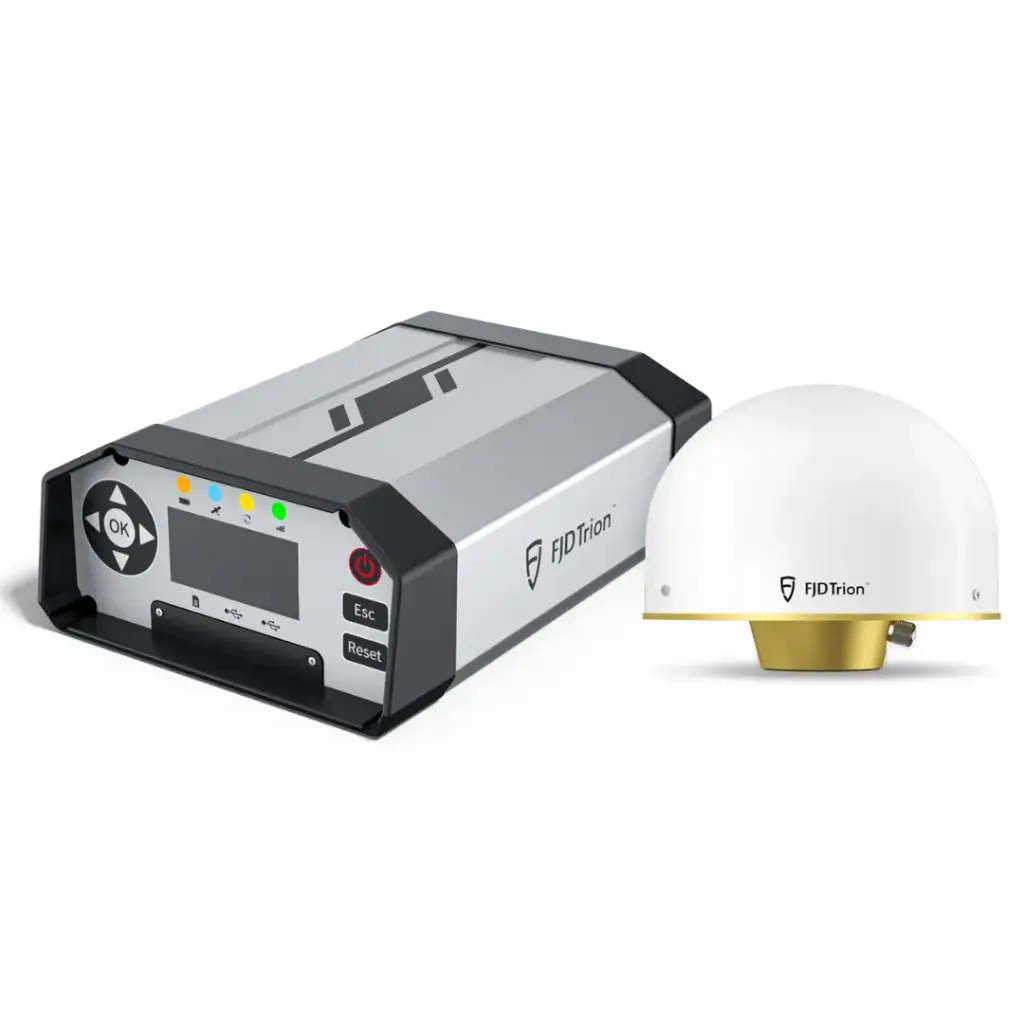

FJD Trion N10 CORS SYSTEM

https://store.sveaverken.com/web/image/product.template/102/image_1920?unique=e7ad0ad
(0 review)

High-performance GNSS CORS system delivering fast, stable, and accurate RTK corrections for agriculture, surveying, and robotics.

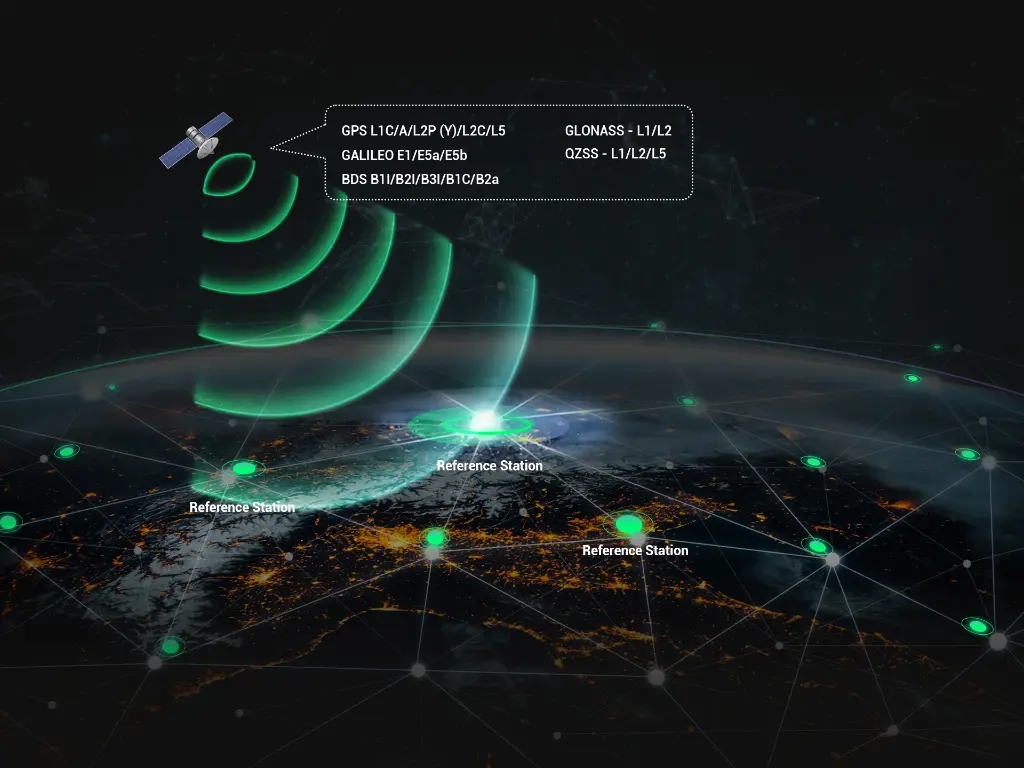

  • Multi-Constellation & Multi-Frequency: Supports GPS, GLONASS, Galileo, BDS, and QZSS across 16 frequency bands.
  • Centimeter-Level Accuracy: Support single RTK and VRS, horizontal accuracy better than 2 cm, vertical accuracy better than 5 cm.

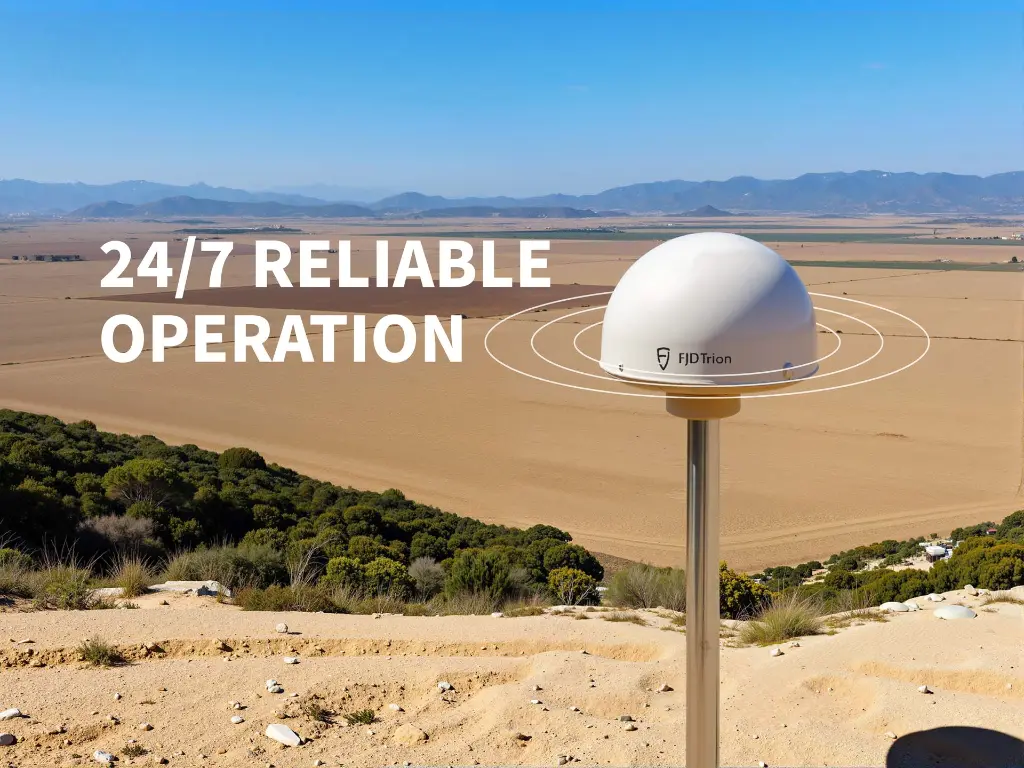

  • 24/7 Reliable Operation: Continuous correction data service, with a built-in battery supporting ≥24 h backup and MTBF ≥25,000 h.
  • Versatile Network Connectivity: Supports Ethernet, 4G and Wi-Fi, automatic redundancy and backup, ensuring uninterrupted data transmission.

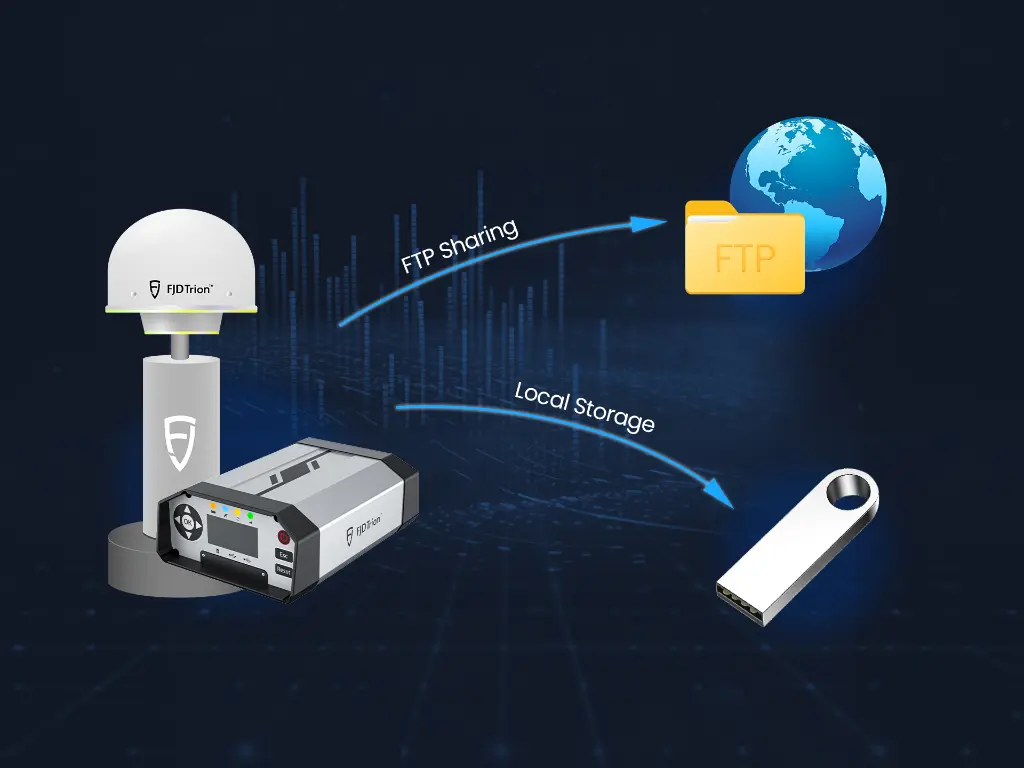

  • Smart Data Management: Features built-in FTP push for raw observation data and local cyclic storage to ensure efficient transfer and secure backup.

¥ 2,654.87 2654.87 CNY ¥ 2,654.87 Tax Excluded

¥ 3,000.00 Tax Excluded

Not Available For Sale

This combination does not exist.

Contact Us

Precision & Efficiency

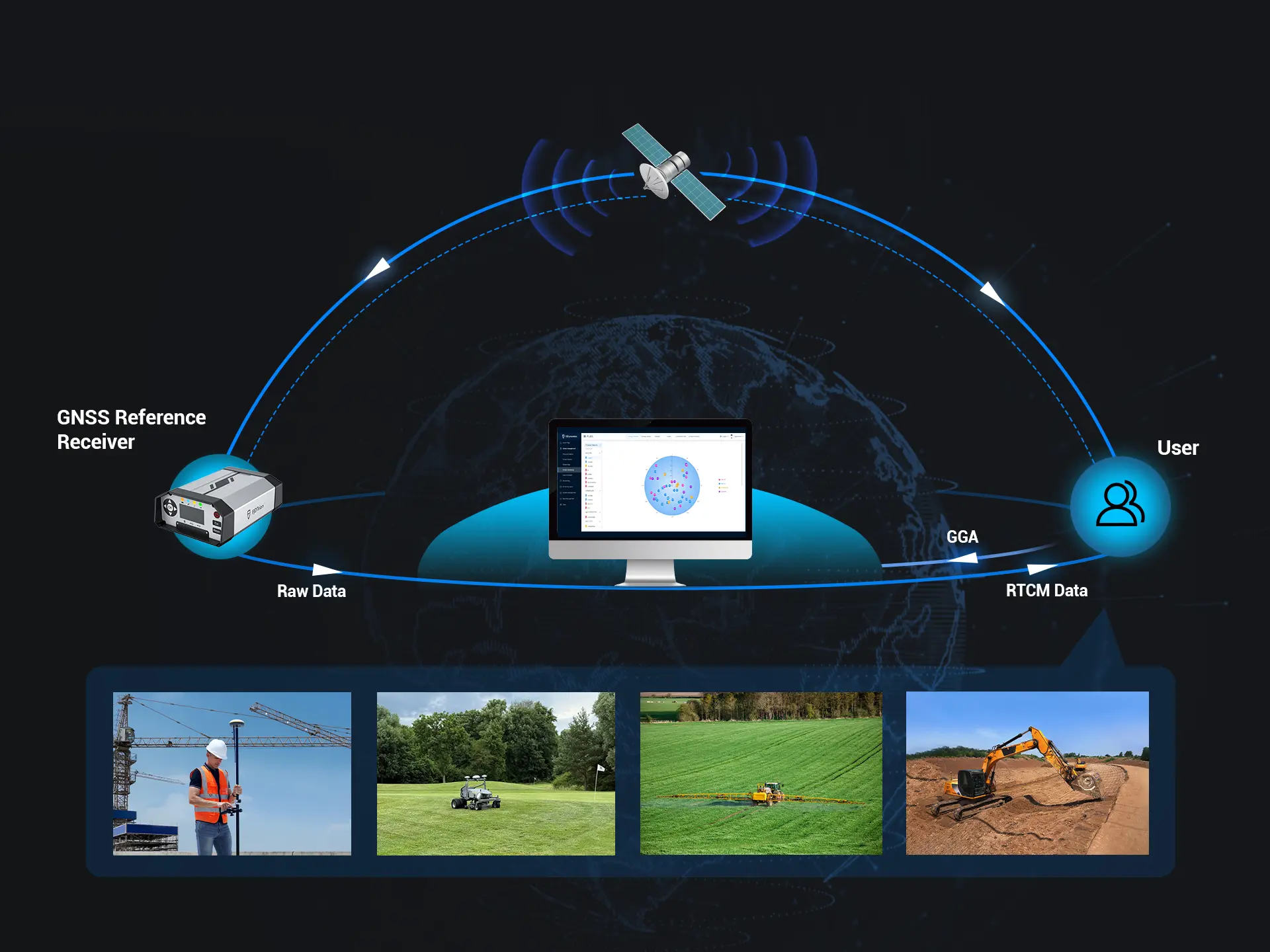

The FJD Trion N10 GNSS CORS system delivers fast and stable RTK corrections with centimeter-level accuracy. Multi-constellation and multi-frequency support ensure reliable positioning for agriculture, land surveying, and robot



Compatibility & Speed

Fully compatible with maintance RTK devices, the system supports RTCM2.x/3.x and NRRIP protocols. Quick setup and seamless connectivity make integration efficient for professional GNSS networks.

Management & Maintenance

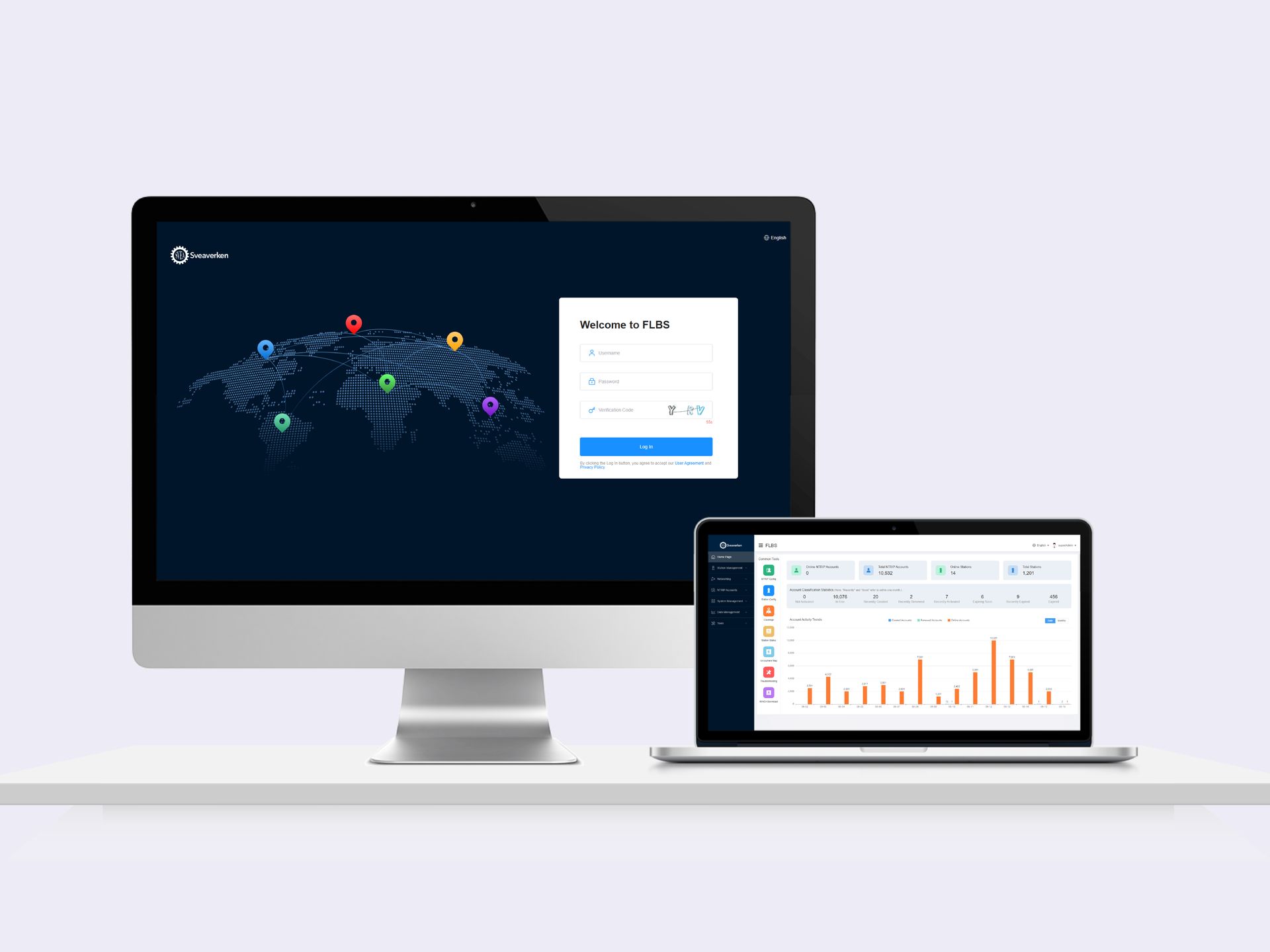

Simplify station operations with remote management via the FLBS platform. Automatic alerts, NTRIP account management, and data backup reduce downtime and maintenance costs, ensuring reliable CORS network performance.


Specifications

✽   System Capabilities and Connectivity

  •  Signal

BDS B1I/B2I/B3I/B1C/B2a

GPS L1C/A/L2P (Y)/L2C/L5

GLONASS L1/L2

Galileo E1/E5a/E5b

QZSS L1/L2/L5

  • Single Point Position (RMS)
    Horizontal: 1.5 m Vertical: 2.5 m
  • RTK (RMS) Horizontal: 0.8 cm + 1 ppm Vertical: 1.5 cm + 1 ppm
  • Static Post-processing (RMS)
    Horizontal: 2.5 mm + 1 ppm Vertical: 5.0 mm + 1 ppm
  • Update Rate
    Up to 5 Hz
  • Protocols
    NMEA-0183, RTCM2.x/3.x
  • Network Protocol
    NTRIP/TCP

✽   Operating Environment

  • Operating Temperature
         -40°C ~ +65°C
  • Storage Temperature -40°C ~ +80°C
  • IP Rating
         IP67

✽    Power Supply

  • Input Voltage
         AC 90-260V DC 9-36V
  • Power Consumption (Standard)
         5W

Package Contents Overview

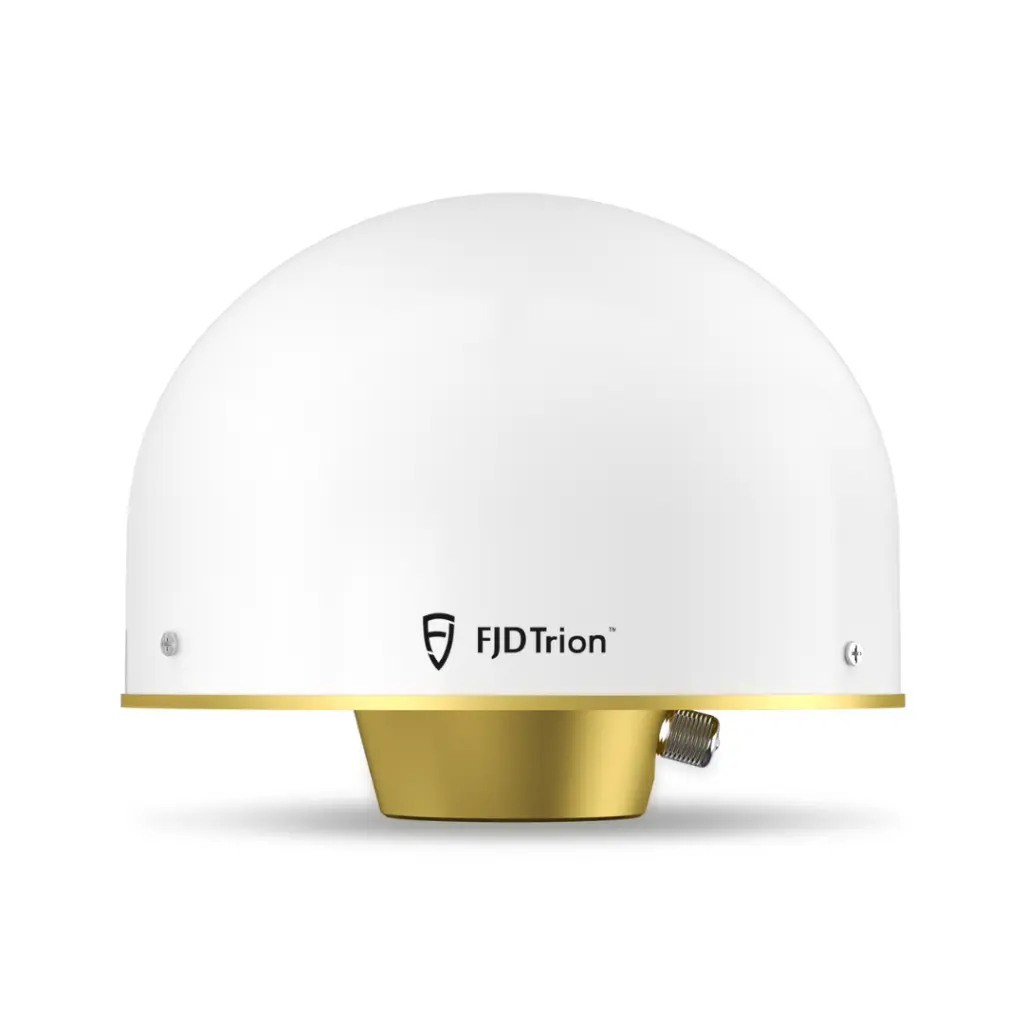

The following lists detail the complete components included in the FJD N10 GNSS Reference Receiver system and the Choke Ring Antenna. Each item is carefully packed to ensure safe delivery and seamless setup, providing all necessary accessories, cables, and documentation required for immediate deployment and operation.

For a closer look, please watch our N10 Product Packaging Video, which demonstrates the unboxing and all included components.

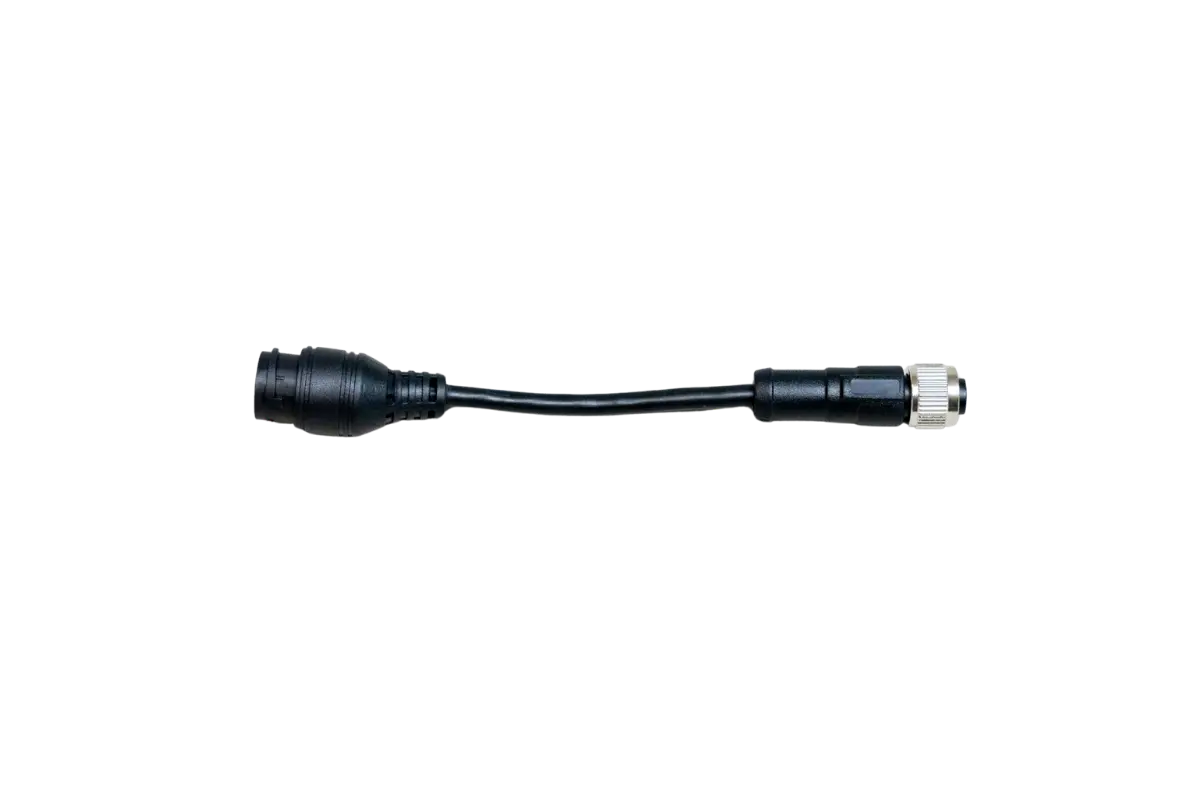

 Receiver Packing List

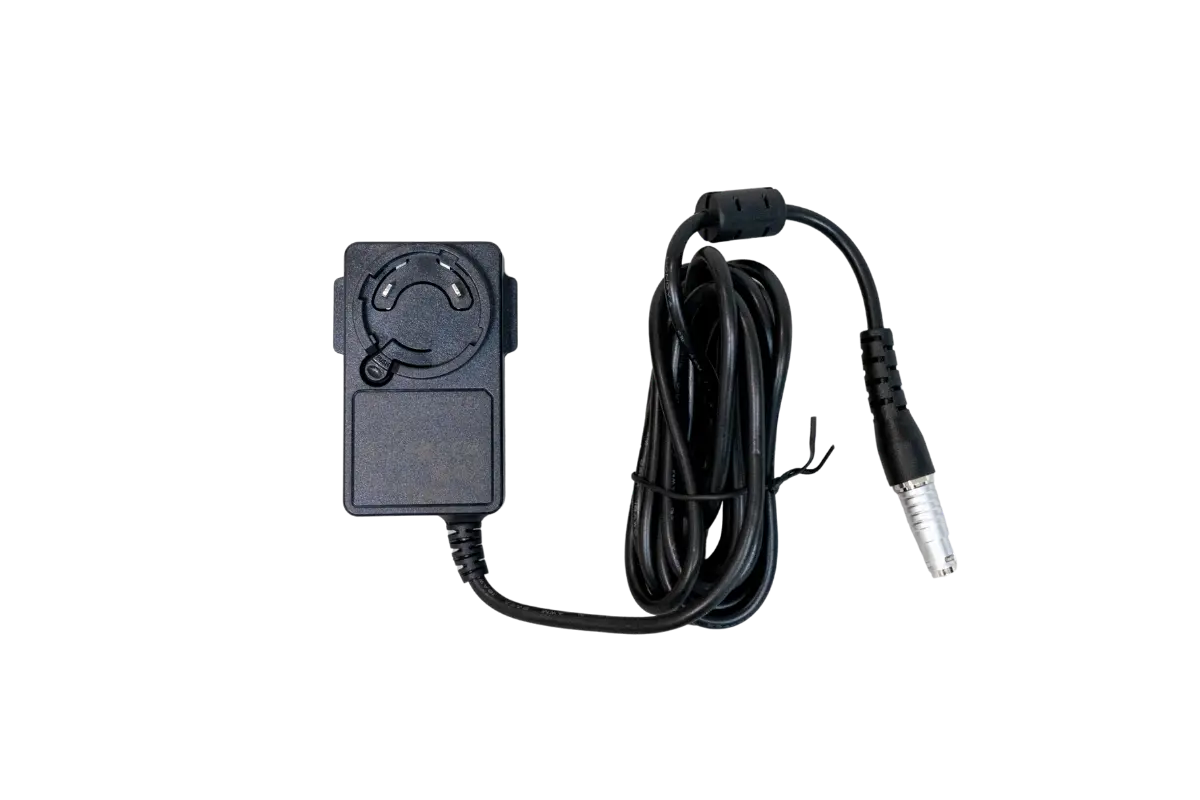

Power Adaptor *1

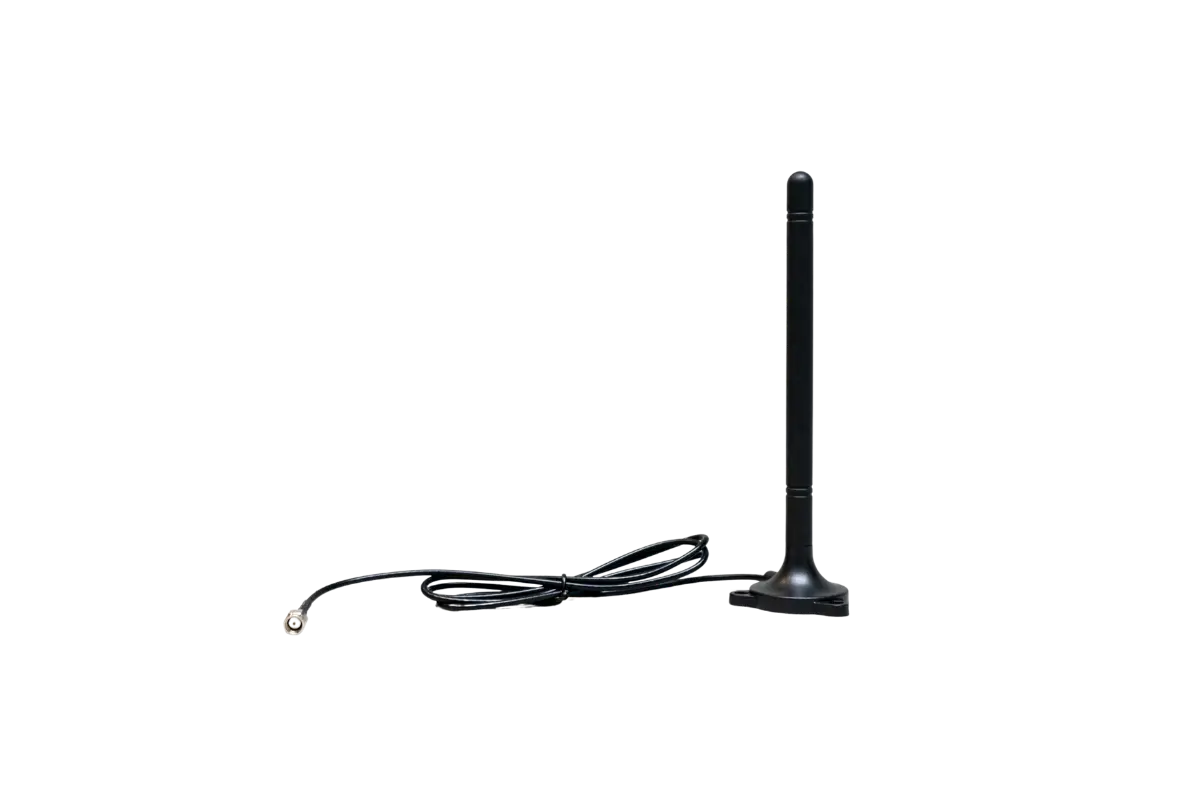

4G Antenna *1

Feature Three

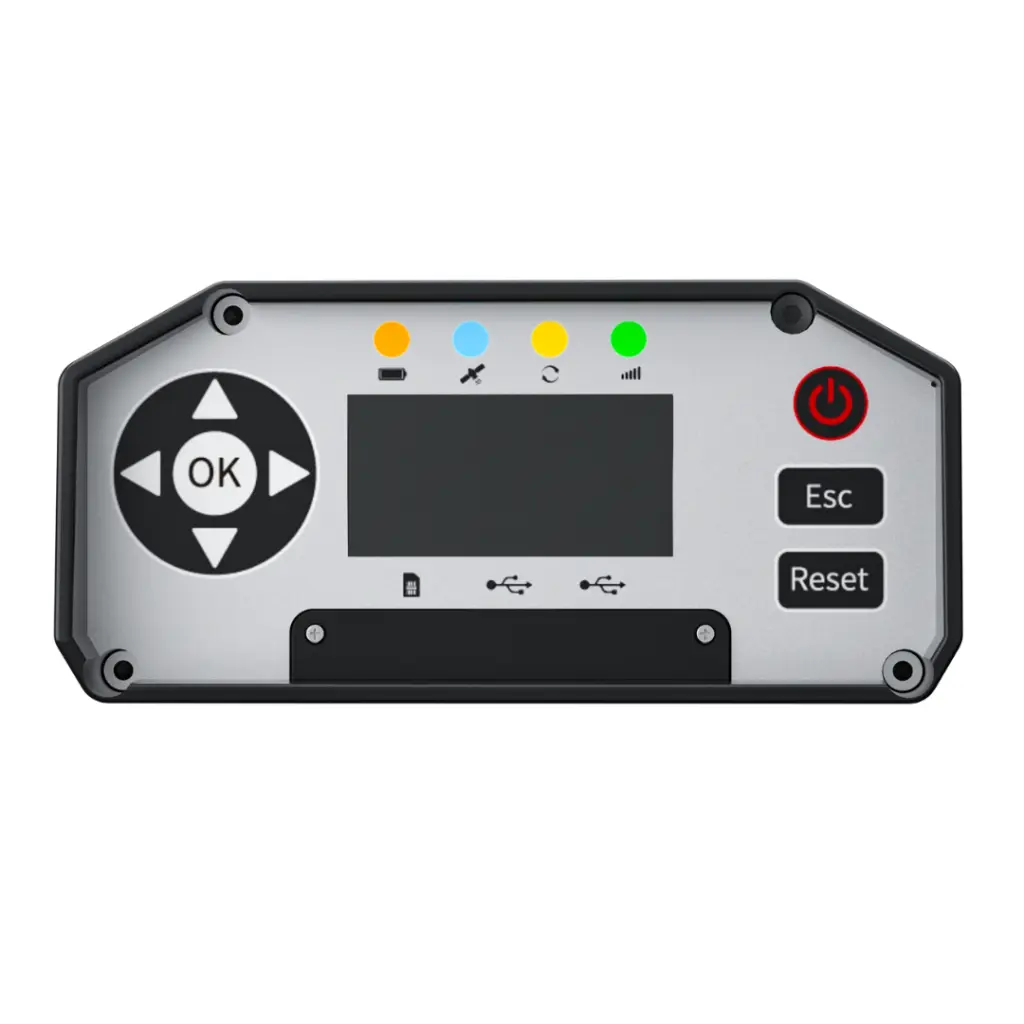

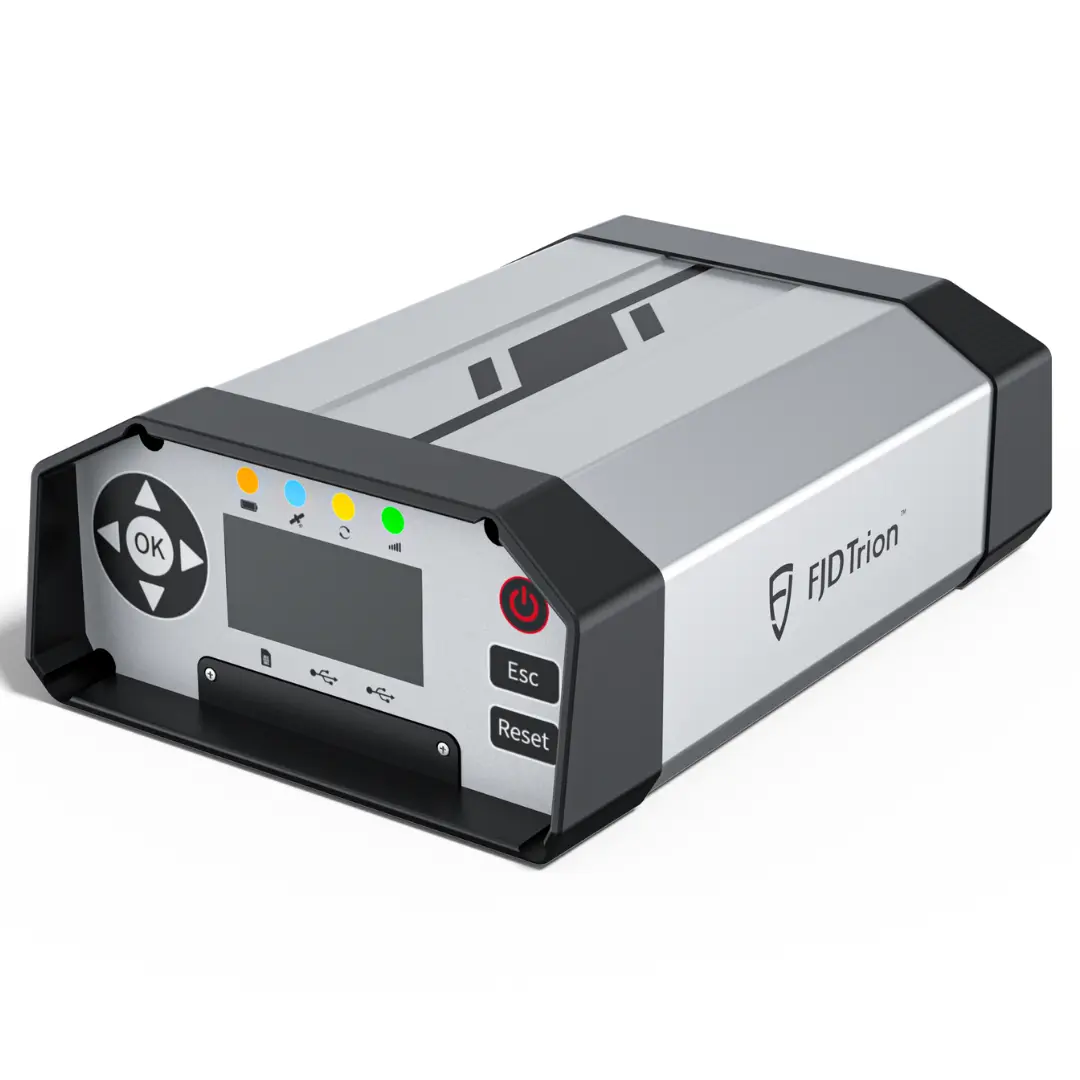

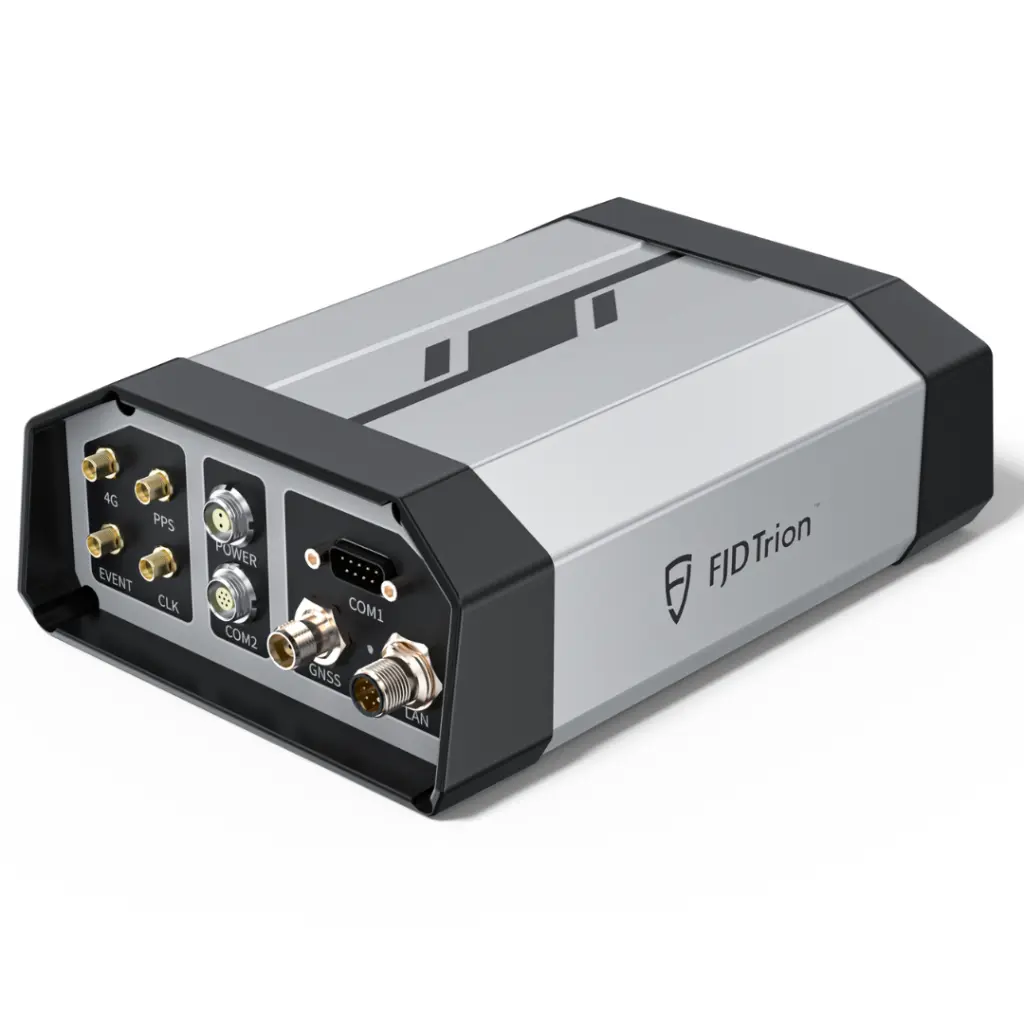

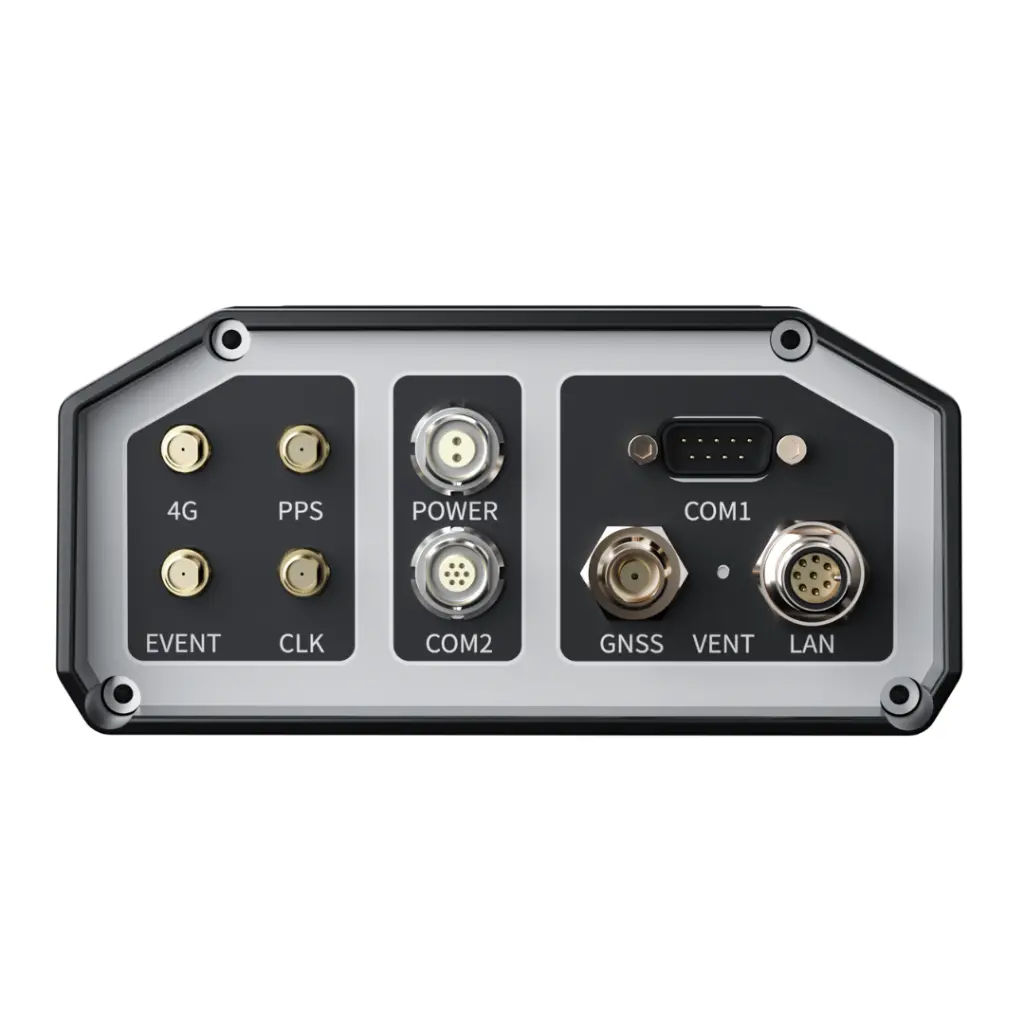

N10 GNSS Reference Receiver *1

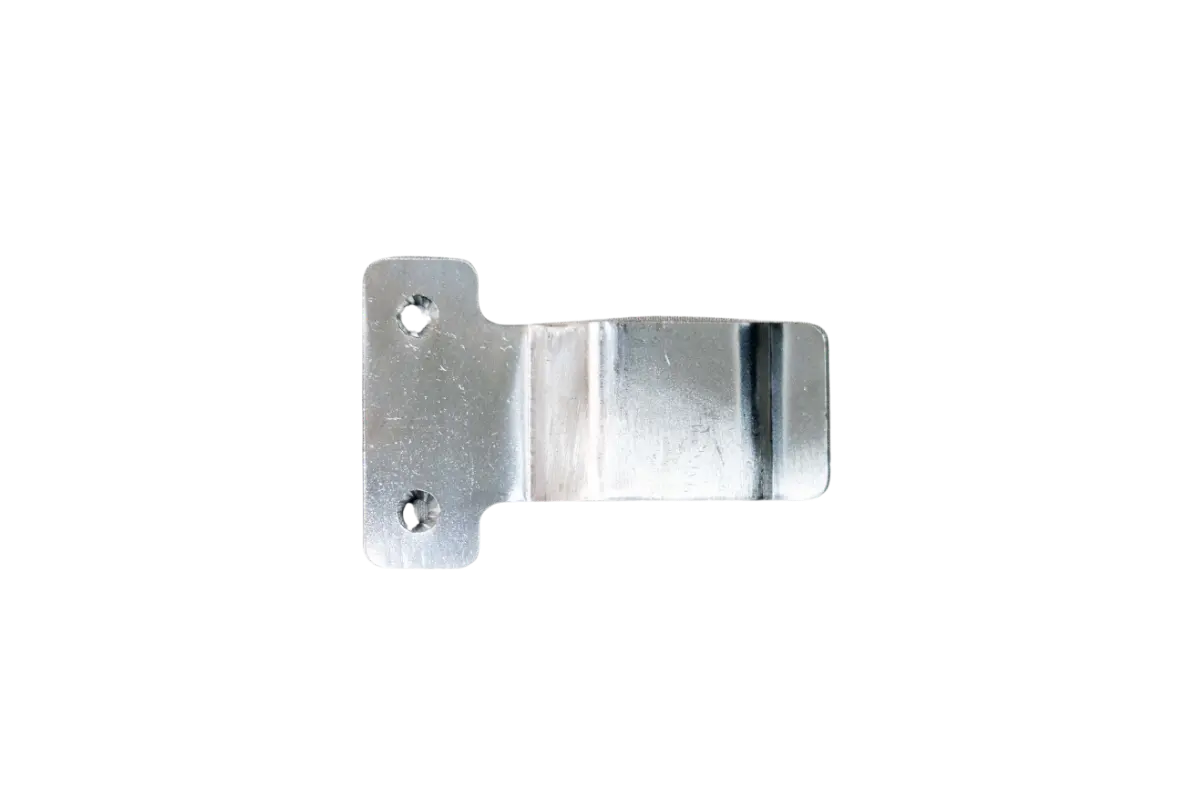

Spring Clasp *1

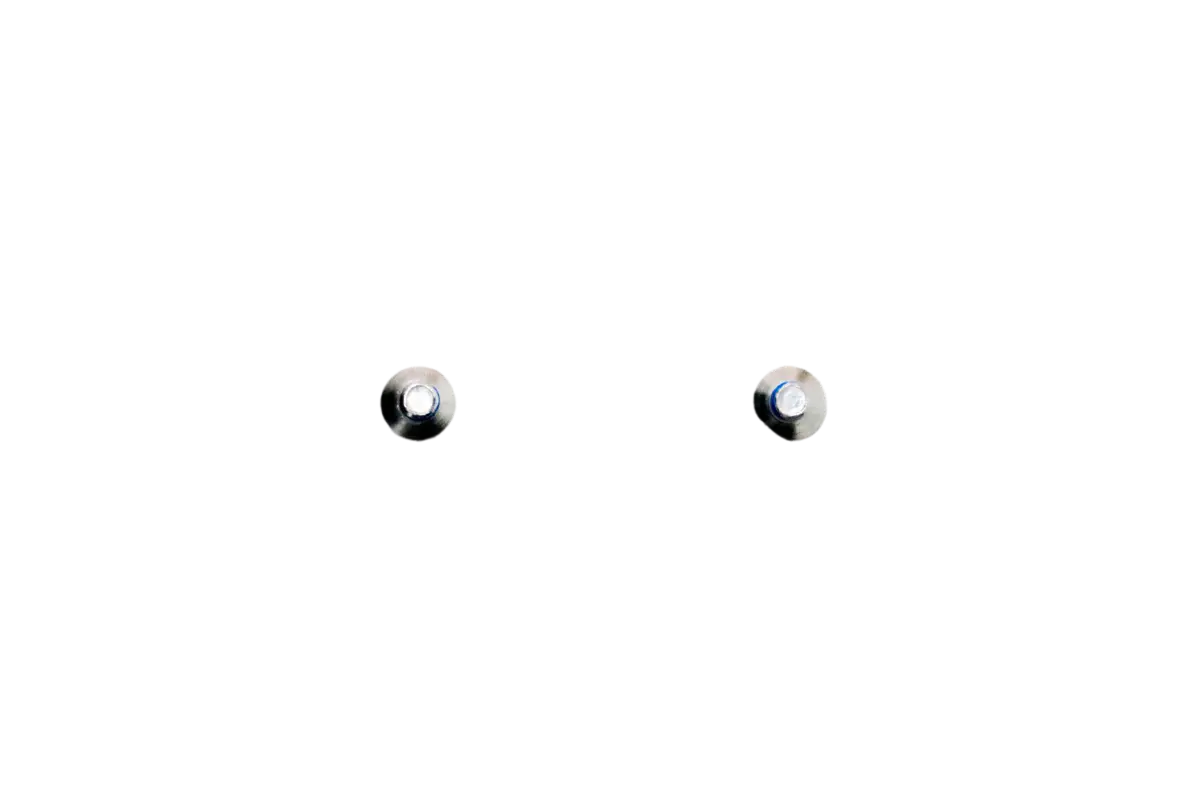

M3 Hexagon Socket Cap Screws *2

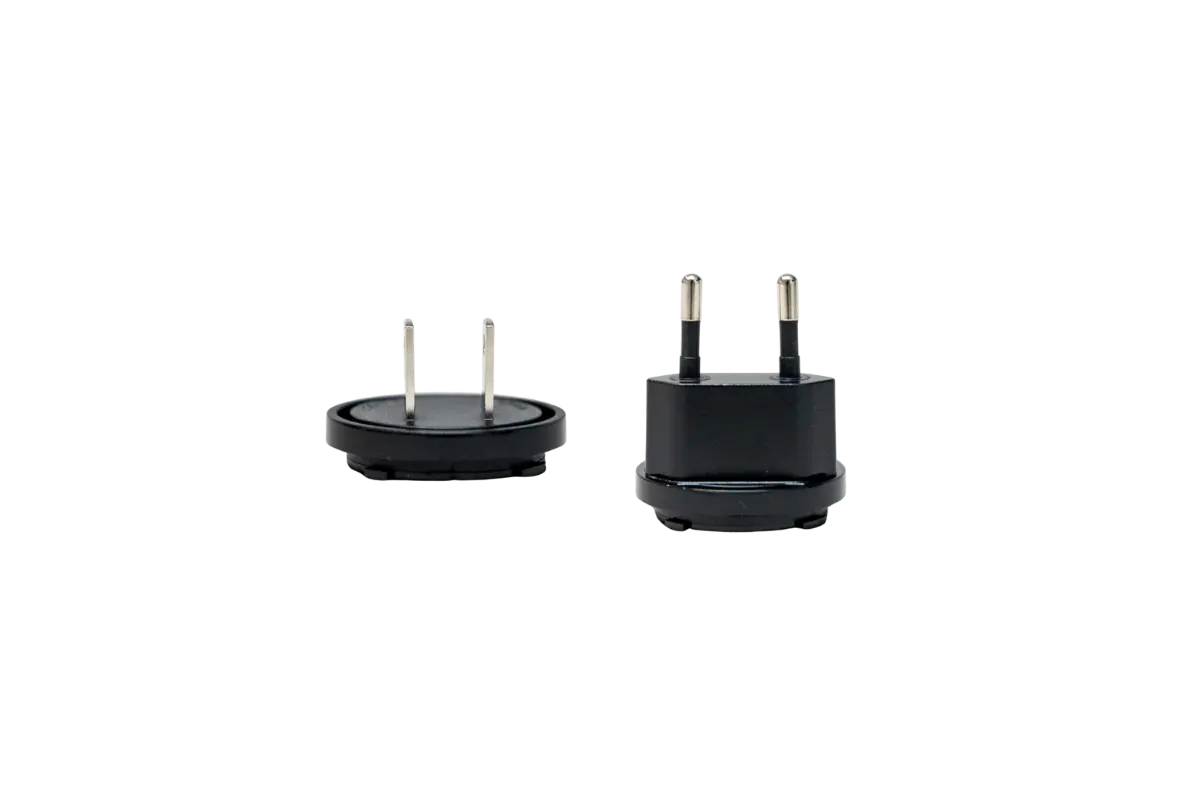

US Plug / UK Plug (choose one)*1

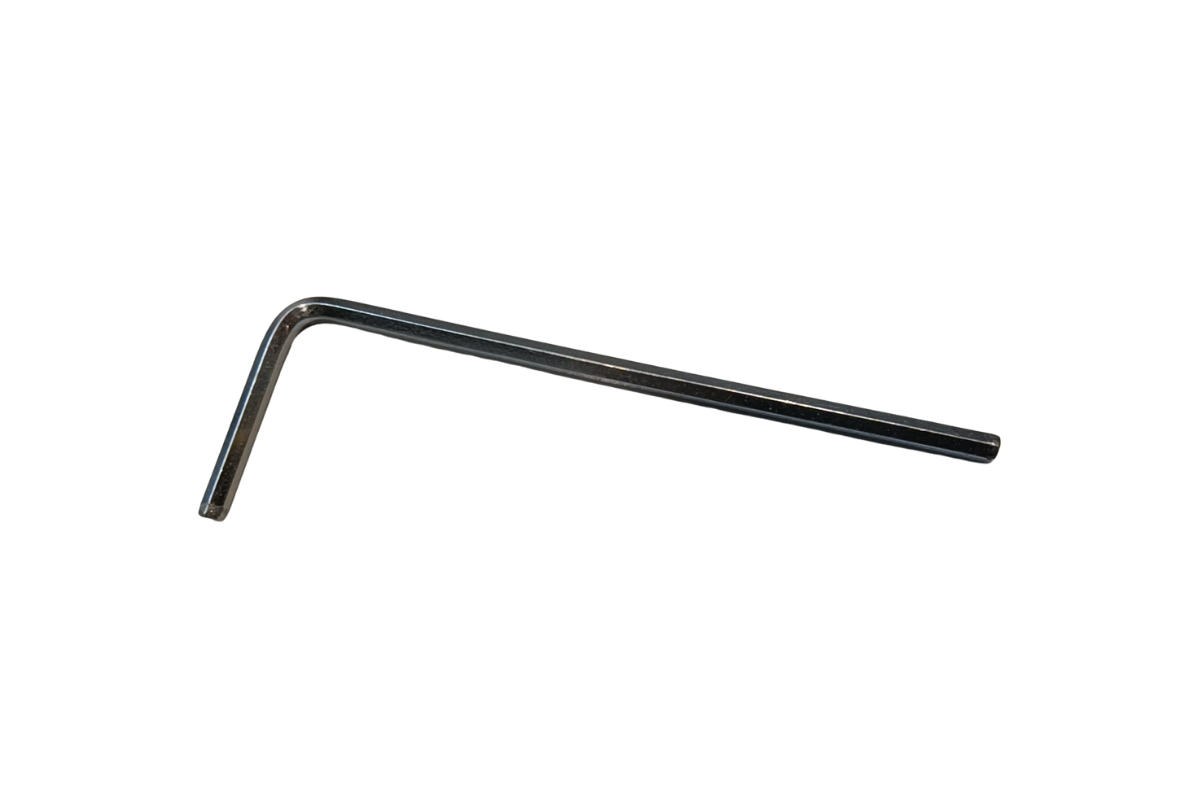

Hex Wrench *1


Quick Start User Guide *1

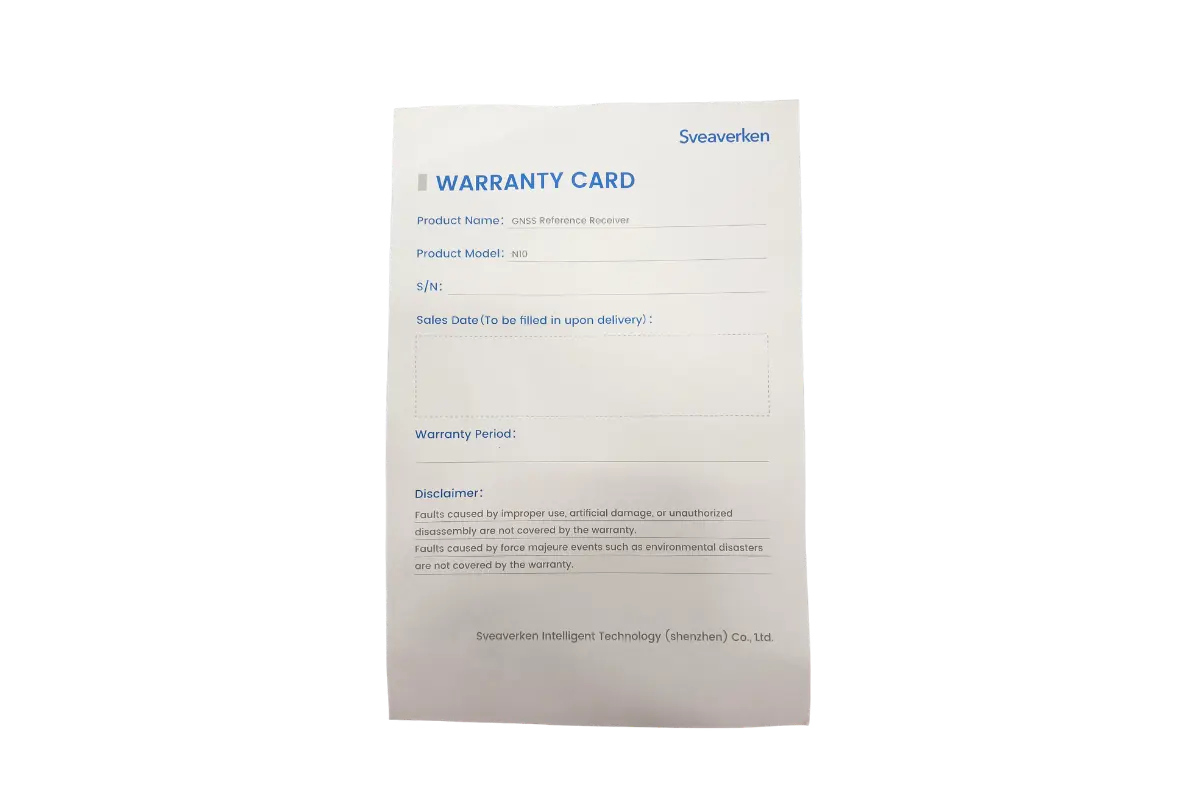

Warranty card *1

 Certification *1

Download

For easy setup and efficient operation of FJD Trion N10 GNSS Reference Receiver, we provide all necessary documentation for users. You can download the Quick Start Guide to get your receiver up and running quickly, and the User Manual for detailed instructions on installation, configuration, and maintenance. These resources ensure smooth operation of your GNSS CORS System and help you achieve accurate RTK corrections for surveying, agriculture, and robotics applications.

FAQs

Transmit RTK signals via the network—don’t worry about distance limits or terrain obstructions. Focus on your terminal’s computing power—make sure it delivers the accuracy you need under current signal conditions. Stay within 30 km to ensure stable positioning and reliable performance. Apply it to most precision operation scenarios with confidence!

Place the GNSS antenna in an open area—keep it free from obstructions and interference. Stay at least 300 m away from objects that may cause signal interference. Ensure a satellite line of sight with an elevation angle greater than 10°. Mount the GNSS antenna vertically—never install it at an angle.

Note that N10 typically consumes 5W. Expect about 3.6 kWh per month and around 43.8 kWh per year.When the external power supply is disconnected, the built-in battery can provide up to 24 hours of operation.

Connect via Ethernet, 4G, or Wi-Fi—or pair it with a Starlink terminal. Enable dual or triple network backup, and follow the priority order: Ethernet > 4G > Wi-Fi. It is recommended to use a 4G SIM card with a 10 GB/month data plan.

Each NTRIP account corresponds to a single user terminal. Do not use the same account on multiple terminals simultaneously—staggered usage is allowed. The NTRIP account requires a subscription; Renewal is a must to continue usage after expiration.

N10 can align with the local NTRIP service coordinate system. If no special requirements, FJDynamics will use ITRF2020 defaultly to compute and set the base station coordinates.

Both the N10 CORS station and terminal must maintain network stable.When multiple CORS stations provide regional coverage, the FLBS platform will automatically switch the terminal to the nearest station (without user awareness).

Choose the appropriate access point based on the RTK signal format supported by the terminal.N10 CORS station provides a universal access point (RTCM), compatible with all FJDynamics products.For other brand terminals, it is recommended to confirm compatibility with FAE in advance.
