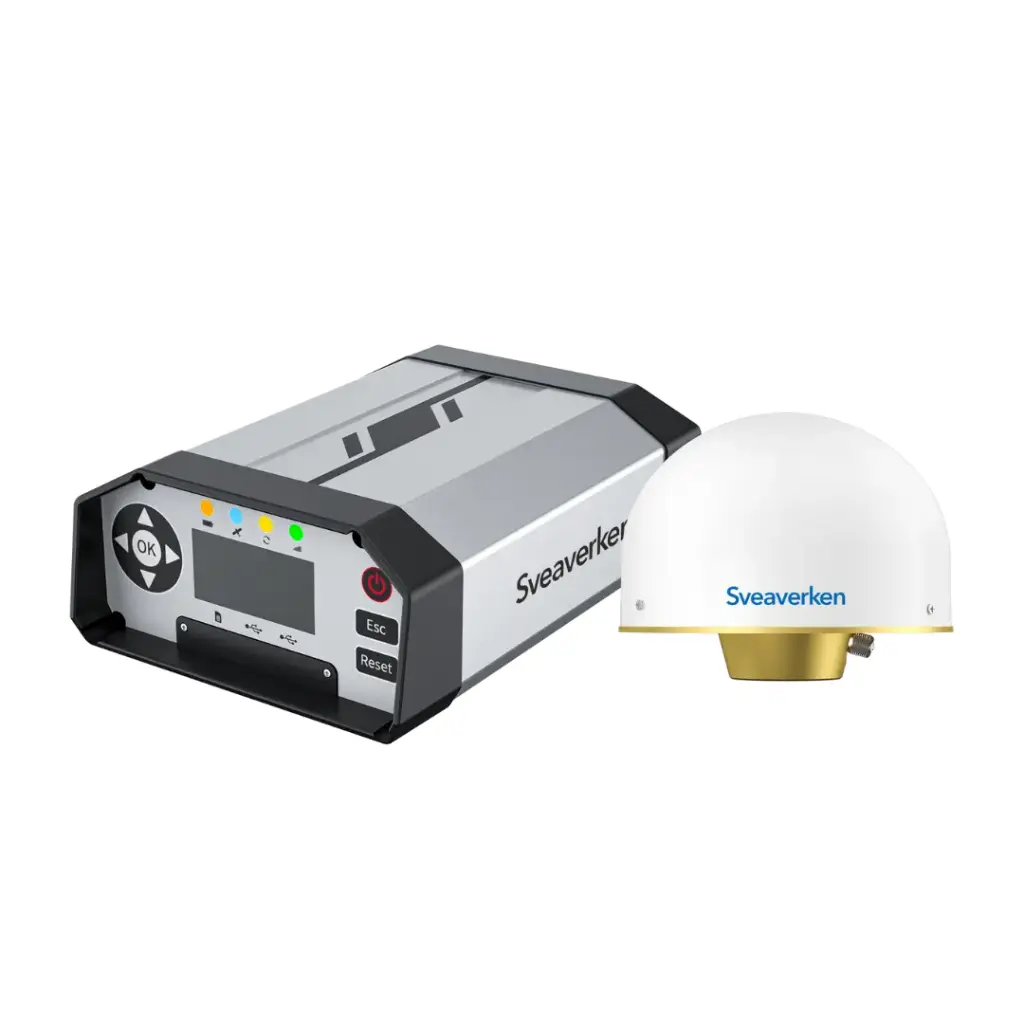

Sveaverken N10 CORS SYSTEM

https://store.sveaverken.com/web/image/product.template/102/image_1920?unique=b13f477
(0 review)

Durable GNSS CORS system built for precision farming and autonomous operations, ensuring 24/7 reliable RTK service.

  • High-Precision Corrections: Provides centimeter-level RTK correction services, enabling precise agriculture, mowers, surveying and mapping.

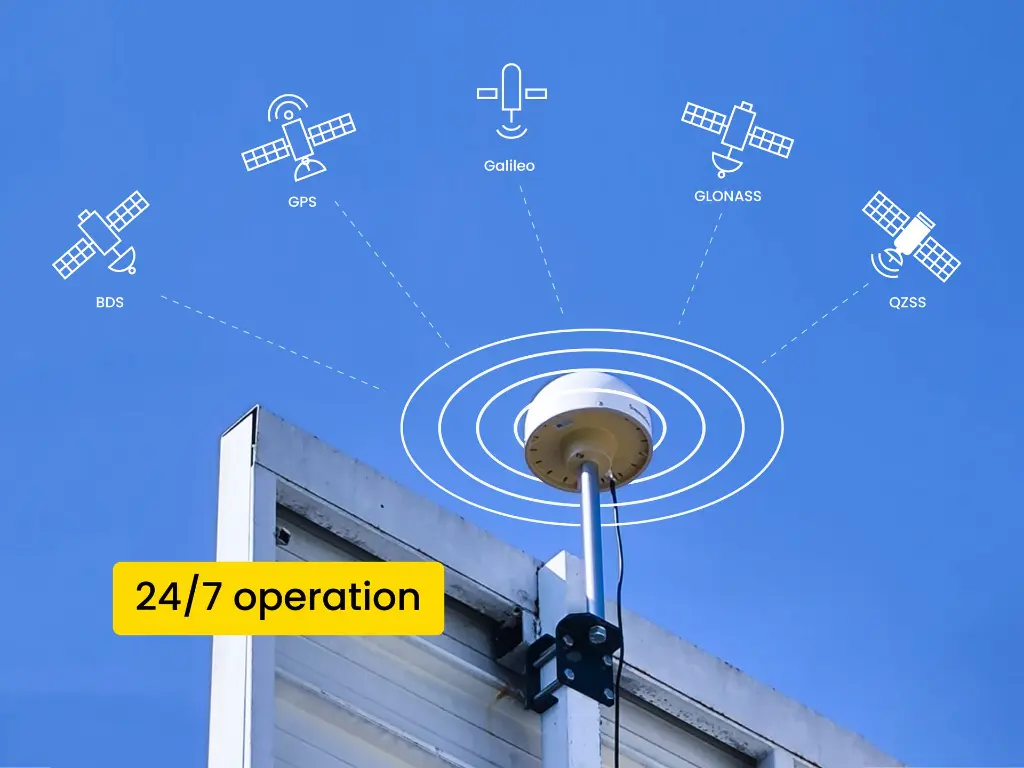

  • Multi-Frequency & All-Weather: Internet-based advanced multi-frequency GNSS technology ensures reliable 24/7 signal stability within the coverage area.
  • Rugged & Durable: Magnesium alloy housing with IP67 protection supports all-weather outdoor operation and resists harsh environments.

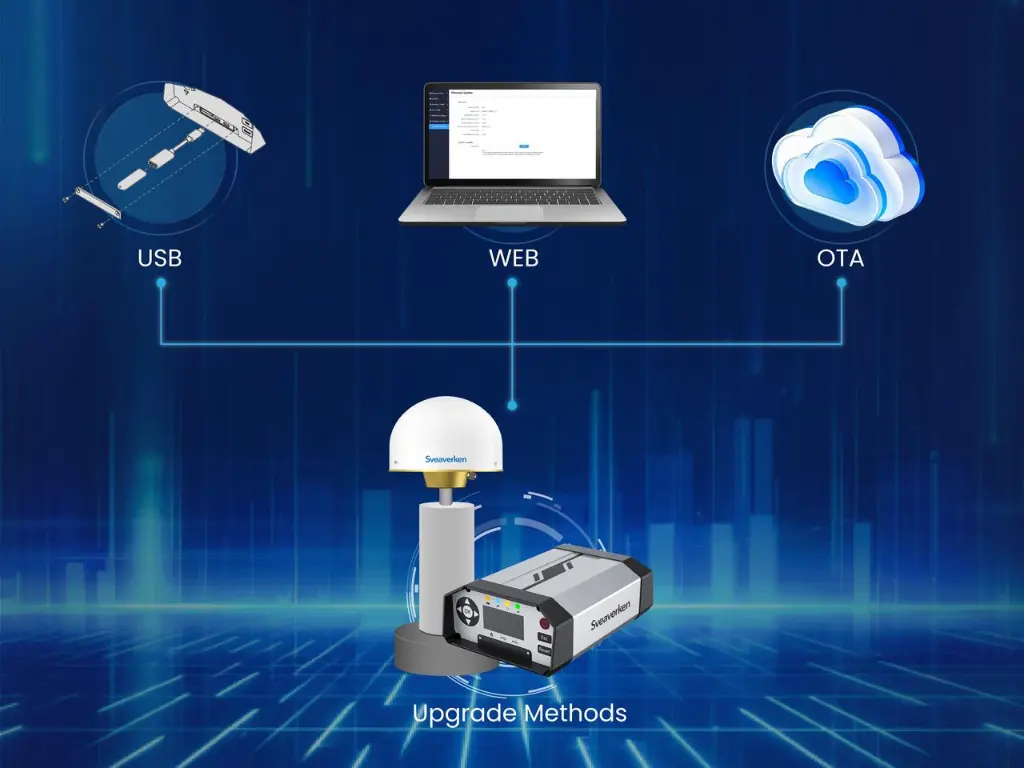

  • Flexible Upgrades: Supports firmware updates via USB, web interface or OTA, ensuring continuous feature evolution.
  • Secure & Reliable: Access control, HTTPS encryption, automatic reconnection and network redundancy guarantee data security and uninterrupted service.

¥ 3,000.00 3000.0 CNY ¥ 3,000.00 Tax Excluded

¥ 3,000.00 Tax Excluded

Not Available For Sale

This combination does not exist.

Contact Us

Precision & Automation

Centimeter-level corrections empower agriculture, surveying and mowing with stable, efficient performance.



Flexibility & Compatibility

Standalone station or CORS network, adapting to diverse RTK devices.

Intelligence & Simplicity

Real-time monitoring, logs and email alerts, enabling efficient operations with reduced labor.


Specifications

✽  System Capabilities and Connectivity

  •  Signal

  • BDS B1I/B2I/B3I/B1C/B2a

    GPS L1C/A/L2P (Y)/L2C/L5

    GLONASS L1/L2

    Galileo E1/E5a/E5b

    QZSS L1/L2/L5

  • Single Point Position (RMS) Horizontal: 1.5 m Vertical: 2.5 m
  • RTK (RMS) Horizontal: 0.8 cm + 1 ppm Vertical: 1.5 cm + 1 ppm
  • Static Post-processing (RMS) Horizontal: 2.5 mm + 1 ppm Vertical: 5.0 mm + 1 ppm
  • Update Rate Up to 5 Hz
  • Protocols NMEA-0183, RTCM2.x/3.x
  • Network Protocol  ​NTRIP/TCP

✽  Operating Environment


Operating Temperature -40°C ~ +65°C
  • Storage Temperature -40°C ~ +80°C
  • IP Rating IP67

✽  Power Supply


Input Voltage AC 90-260V DC 9-36V
  • Power Consumption (Standard) 5W

Package Contents Overview


The following lists detail the complete components included in the Sveaverken N10 Receiver system and the Choke Ring Antenna. Each item is carefully packed to ensure safe delivery and seamless setup, providing all necessary accessories, cables, and documentation required for immediate deployment and operation.

 Receiver Packing List

Power Adaptor *1

4G Antenna *1

Feature *1


N10 GNSS Reference Receiver *1

Spring Clasp *1

US Plug / UK Plug (choose one)*1


Hex Wrench *1


M3 Hexagon Socket Cap Screws *2


Quick Start User Guide *1

Warranty Card *1

 Certification *1

 Choke Ring Antenna Packing List

Clip *1

Spring Washer *1

Bolt *1

Aluminum Pipe *1

Feeder *1

Certification *1

Expansion Bolt *4

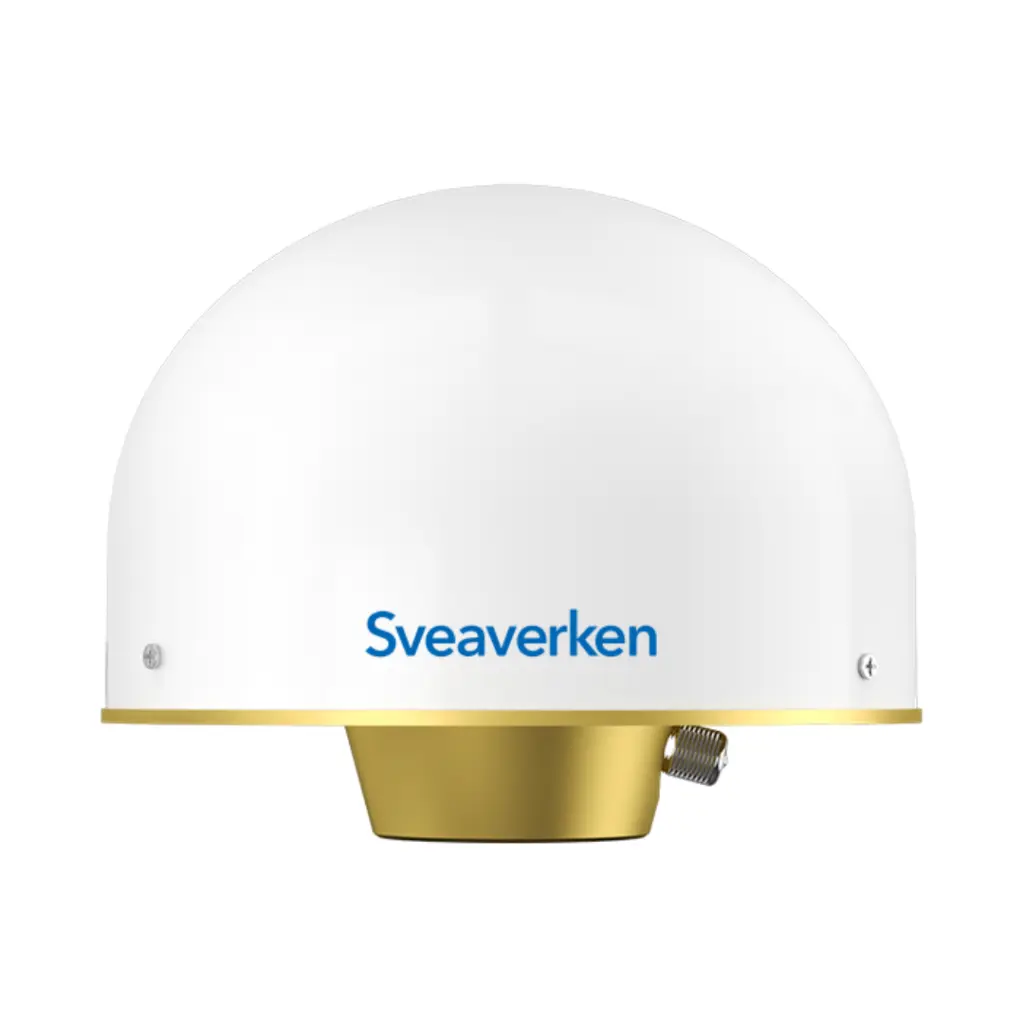

Choke Ring Antenna *1

User Manual *1

Download


For easy setup and efficient operation of Sveaverken N10 Reference Receiver, we provide all necessary documentation for users. You can download the Quick Start Guide to get your receiver up and running quickly, and the User Manual for detailed instructions on installation, configuration, and maintenance. These resources ensure smooth operation of your N10 CORS System and help you achieve accurate RTK corrections for surveying, agriculture, and robotics applications.


N10 GNSS Reference Receiver Quick Start Guide


N10 GNSS Reference Receiver User Manual

FAQs

Transmit RTK signals via the network—don’t worry about distance limits or terrain obstructions. Focus on your terminal’s computing power—make sure it delivers the accuracy you need under current signal conditions. Stay within 30 km to ensure stable positioning and reliable performance. Apply it to most precision operation scenarios with confidence!

Place the GNSS antenna in an open area—keep it free from obstructions and interference. Stay at least 300 m away from objects that may cause signal interference. Ensure a satellite line of sight with an elevation angle greater than 10°. Mount the GNSS antenna vertically—never install it at an angle.

Note that N10 typically consumes 5W. Expect about 3.6 kWh per month and around 43.8 kWh per year.When the external power supply is disconnected, the built-in battery can provide up to 24 hours of operation.

Connect via Ethernet, 4G, or Wi-Fi—or pair it with a Starlink terminal. Enable dual or triple network backup, and follow the priority order: Ethernet > 4G > Wi-Fi. It is recommended to use a 4G SIM card with a 10 GB/month data plan.

Each NTRIP account corresponds to a single user terminal. Do not use the same account on multiple terminals simultaneously—staggered usage is allowed. The NTRIP account requires a subscription; Renewal is a must to continue usage after expiration.

N10 can align with the local NTRIP service coordinate system. If no special requirements, Sveaverken will use ITRF2020 defaultly to compute and set the base station coordinates.

Both the N10 CORS station and terminal must maintain network stable.When multiple CORS stations provide regional coverage, the FLBS platform will automatically switch the terminal to the nearest station (without user awareness).

Choose the appropriate access point based on the RTK signal format supported by the terminal. N10 CORS station provides a universal access point (RTCM), compatible with all Sveaverken products.For other brand terminals, it is recommended to confirm compatibility with FAE in advance.
